Inside Tagsight.
Upload a drawing set, review every tag against the sheet it came from, and export the registers your project runs on. The screens below show that work on a public reference P&ID.
Three drawings included on a new account.
Every row sits on the sheet it came from.

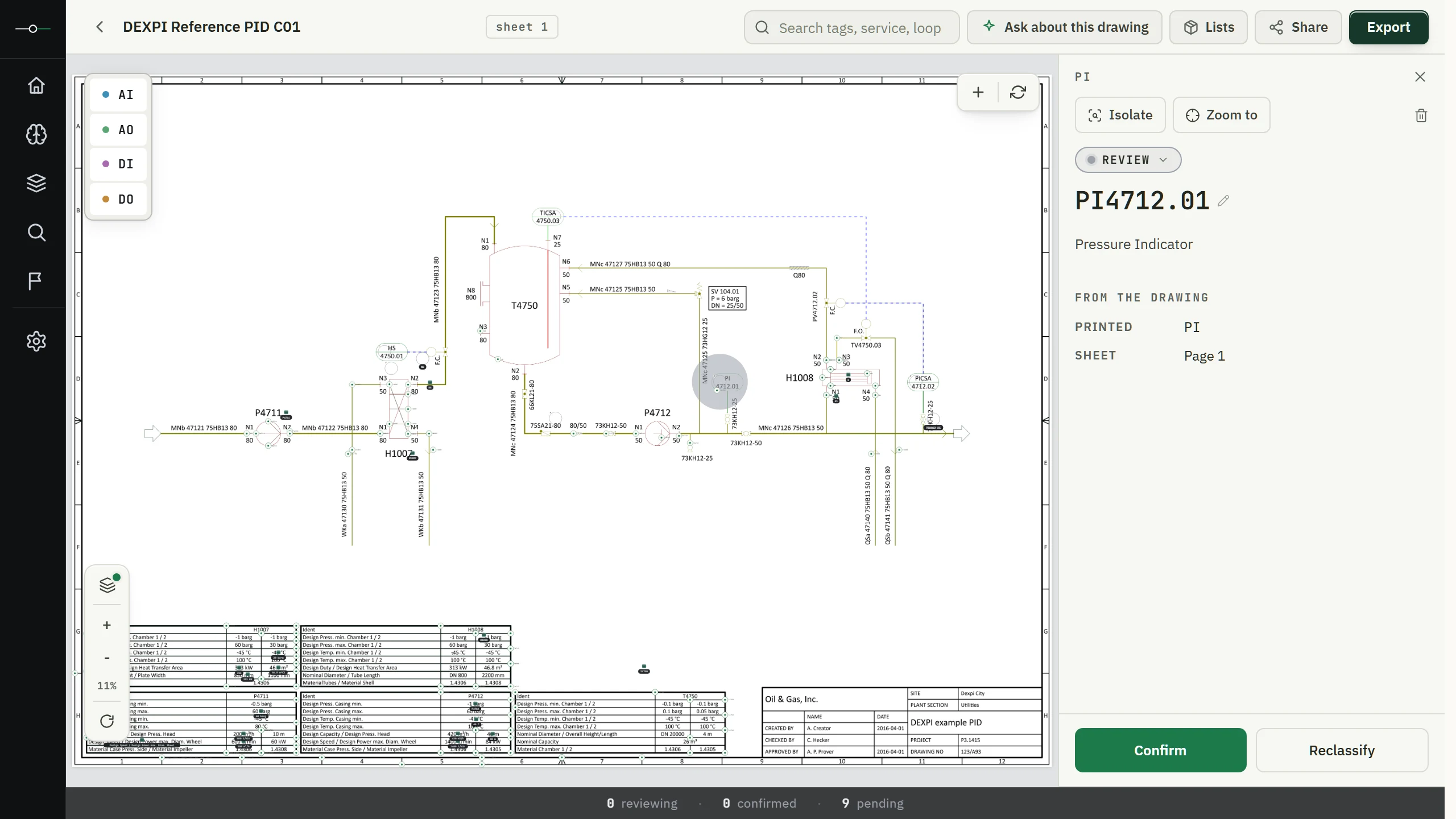

Run it on your own drawingPI4712.01 is selected on the sheet and its record is open beside it: the tag as printed on the drawing, the page it came from, and its description, with Confirm and Reclassify one click away. Every row keeps that link back to the sheet, and nothing exports until your engineer has passed it.
Workspaces hold the drawing sets.

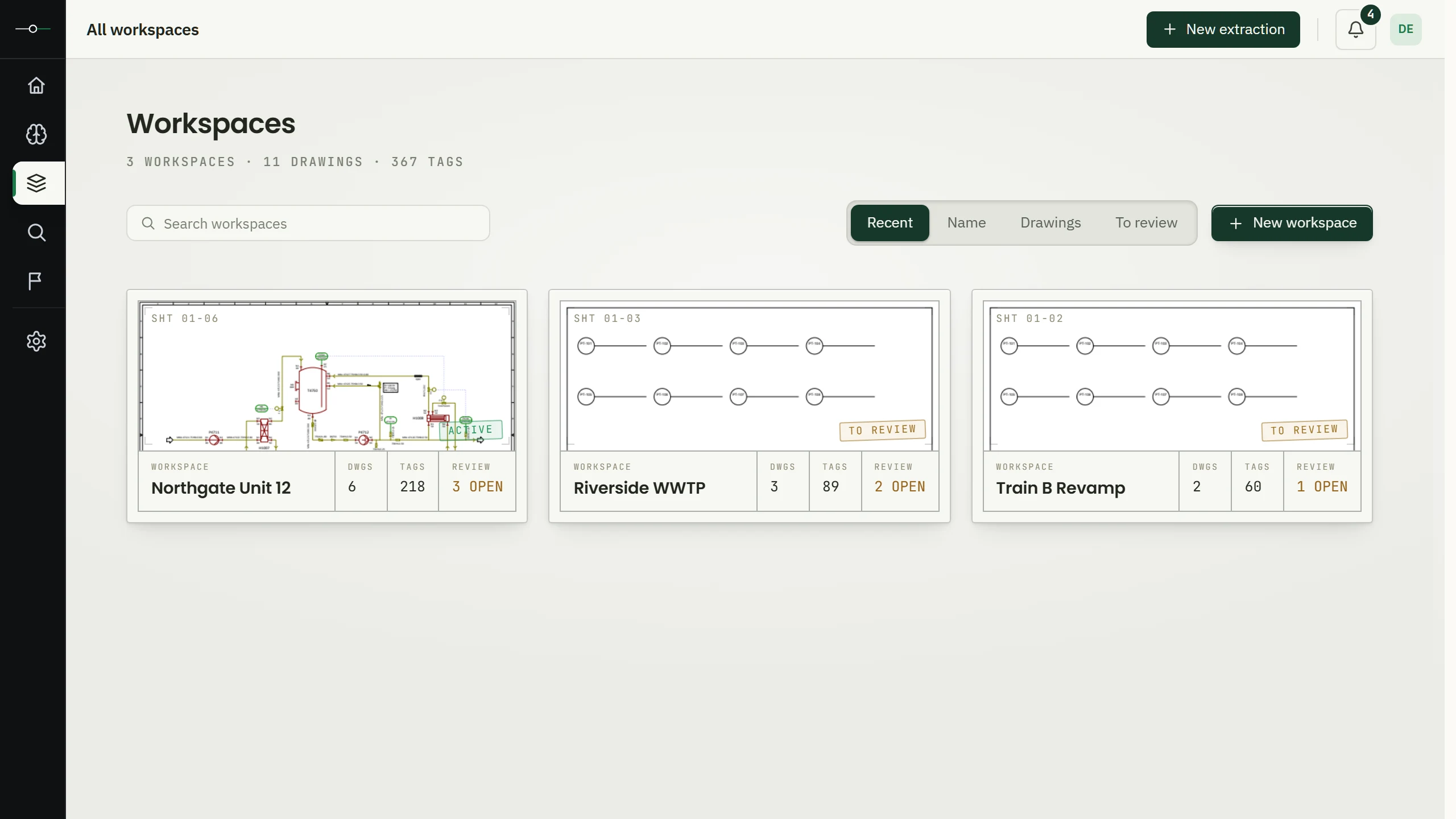

Drawings land in a workspace your team shares, so the whole project sits in one place through every revision. Here Northgate Unit 12 carries 6 drawings and 218 tags with 3 reviews open, and the thumbnails are the sheets themselves.
- Every drawing, with its tag count
- What still needs review, counted
- Thumbnails straight from the sheets
The registers your project runs on.

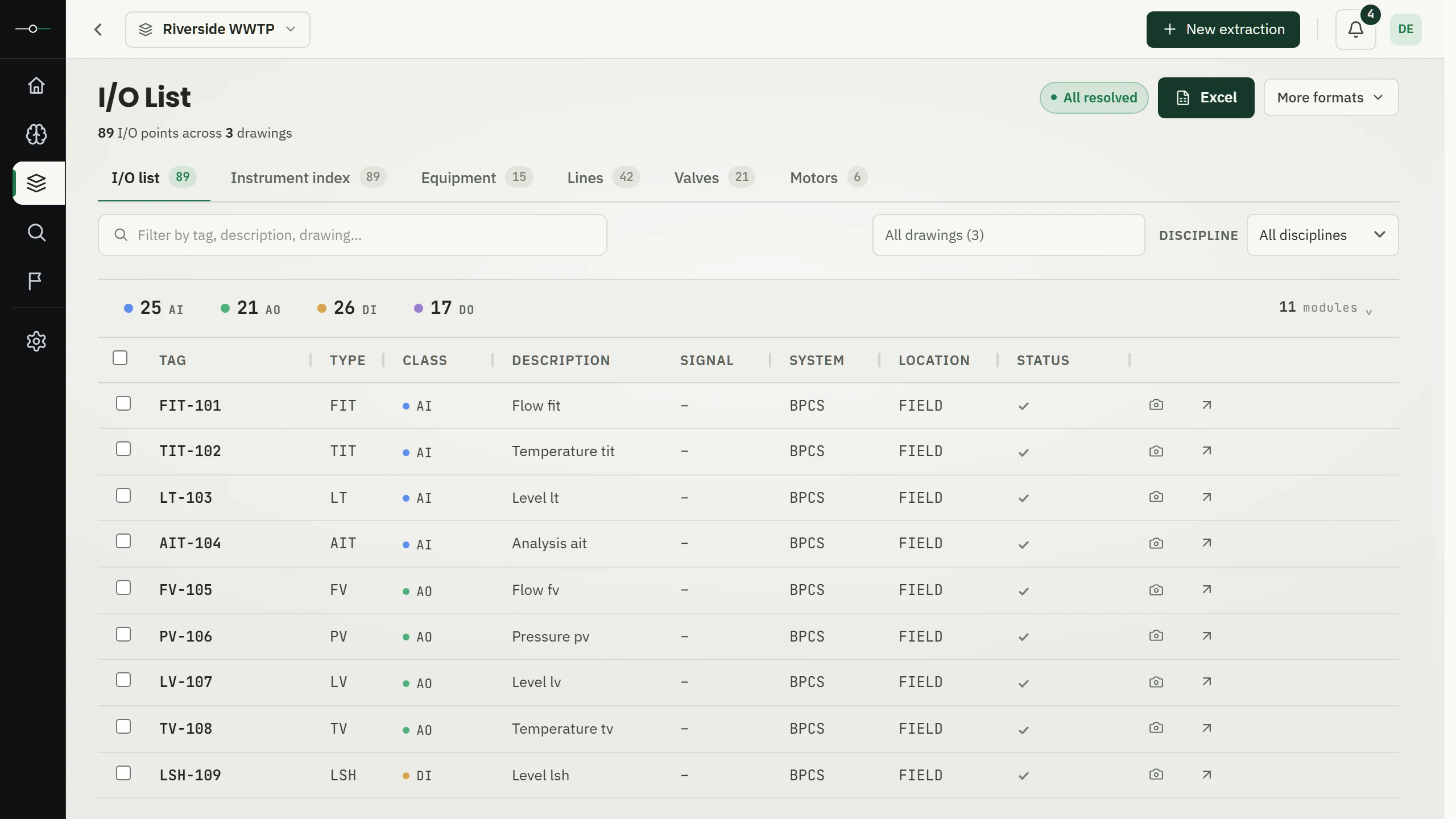

Every export it writesOne upload builds the I/O list, the instrument index, and the equipment, line, and valve lists. This set is 89 I/O points across 3 drawings: every row carries its tag, type, signal class, service description, signal, system, and location, and the AI, AO, DI and DO split stands above the table with the module count.
One approved register, every format.

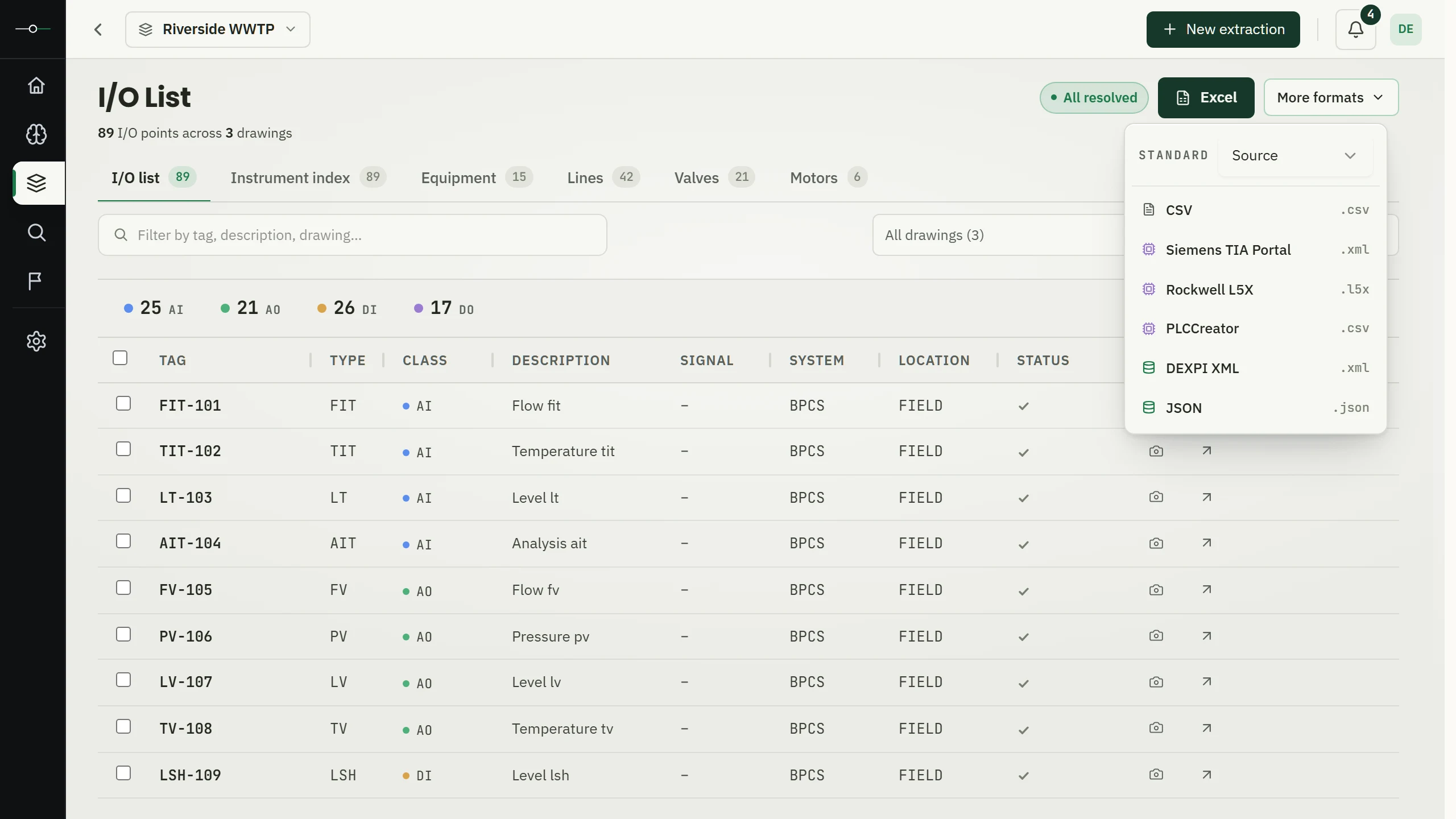

One approved register, every way out. Excel and CSV for the document set, the redlined sheet for the drawing, and Siemens TIA Portal, Rockwell L5X, and PLCCreator for the controls toolchain, with DEXPI XML and JSON from the review canvas for the systems that consume structured data. The spreadsheet and the controls import come from the same rows, so they can never disagree.
Walk into the review with the questions already asked.
Every drawing set comes back with a Drawing Review: the control loops with no measurement, no controller or nothing acting on the process; the tags used on more than one thing; the sheets referenced but never issued; the equipment nothing is measuring; the signals still without a class. Each one is one plain line with the sheet it is on and what the drawing shows, sorted by whether it stops the package leaving, needs a decision, or is simply worth knowing.
It also states what it did not check, and why. A single sheet cannot be compared against another; a set with no line list cannot be checked line by line; nothing is measured against a project specification you have not handed over. You get the register as a spreadsheet to work through and the report as a PDF to table, so the review meeting starts from a list instead of from a stack of drawings.
Bring in the whole bundle.

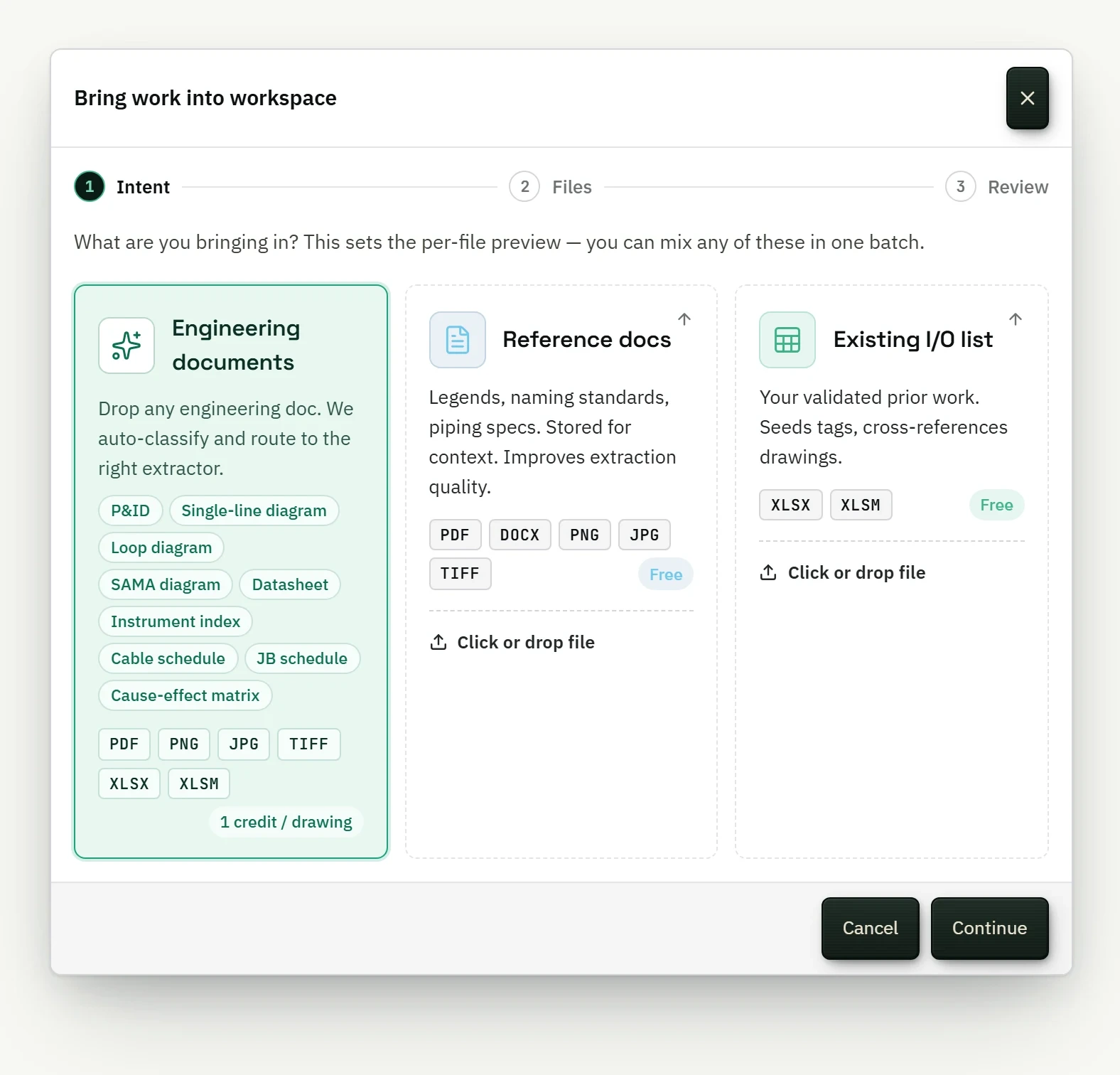

Upload the drawings, the reference documents and any I/O list from earlier work together. PDF, PNG, JPG or TIFF, CAD exports and scans alike.
Common questions
What drawing is shown in these screens?
What does one upload produce?
Does anyone check the reads before they leave the system?
What formats can the register leave as?
What can I bring in besides drawings?
What do I get without buying anything?
Run it on your own drawing.
Your first three drawings are on the house, and a drawing is only counted when you export it, so you read the whole result on your own sheet before anything is charged.
Three drawings included on a new account.
The P&ID in these captures is the DEXPI Reference P&ID (C01), published by DEXPI e.V. in the TrainingTestCases repository under CC BY 4.0. The other drawings shown are demonstration sets.
